2026 MODEL YEAR
Stetson + 6666 Special Edition 27FB
Official Stetson + 6666 Special Edition page on airstream.com ↗
Overview

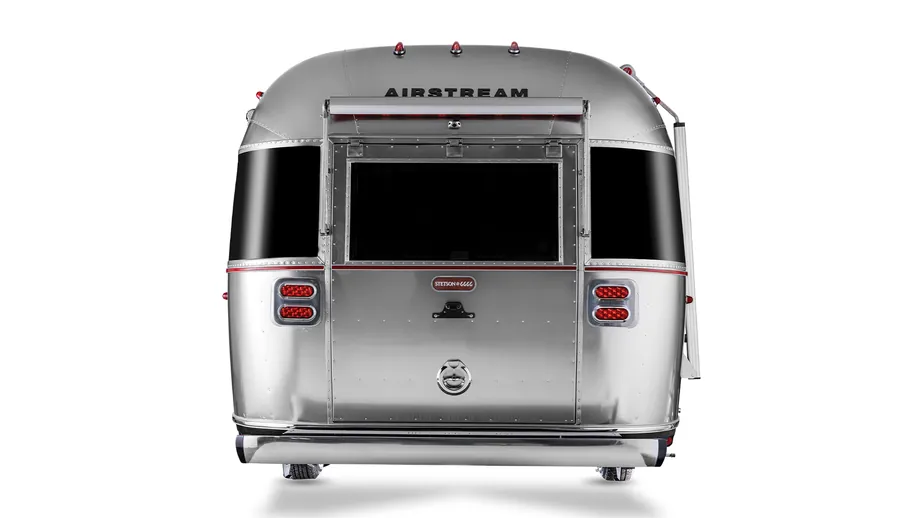

Sleeps up to 4, Front Primary Bed, Two-Piece Mid-Ship Shower and Lavvy, Convertible Booth Style Dinette with Connected Lounge, Rear Hatch for Indoor-Outdoor Living

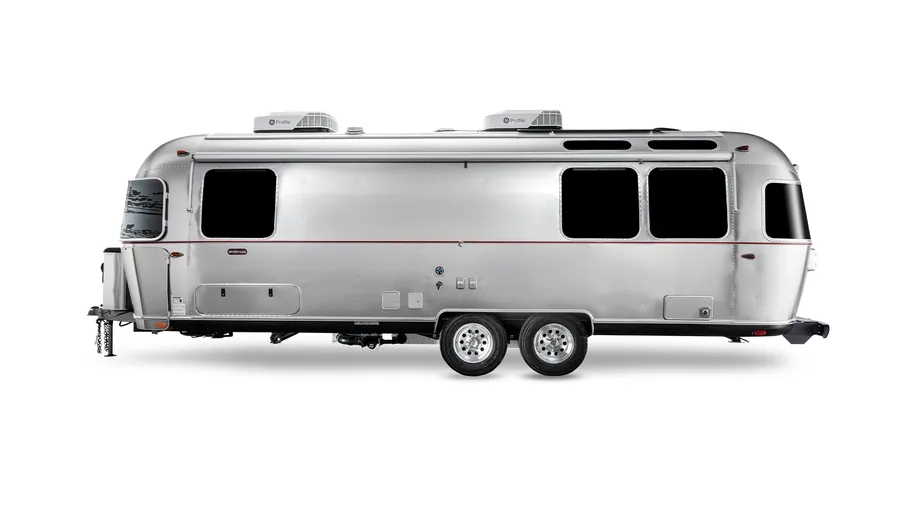

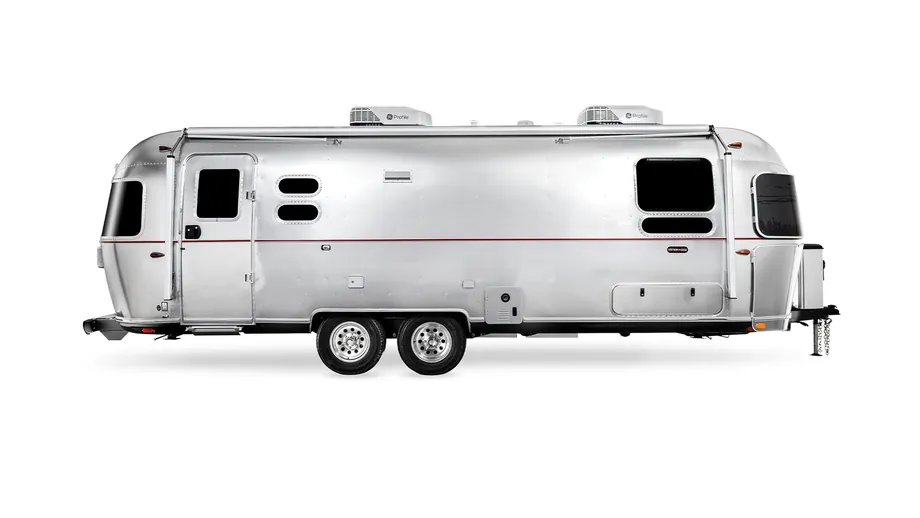

Gallery
10 photosFloor plan

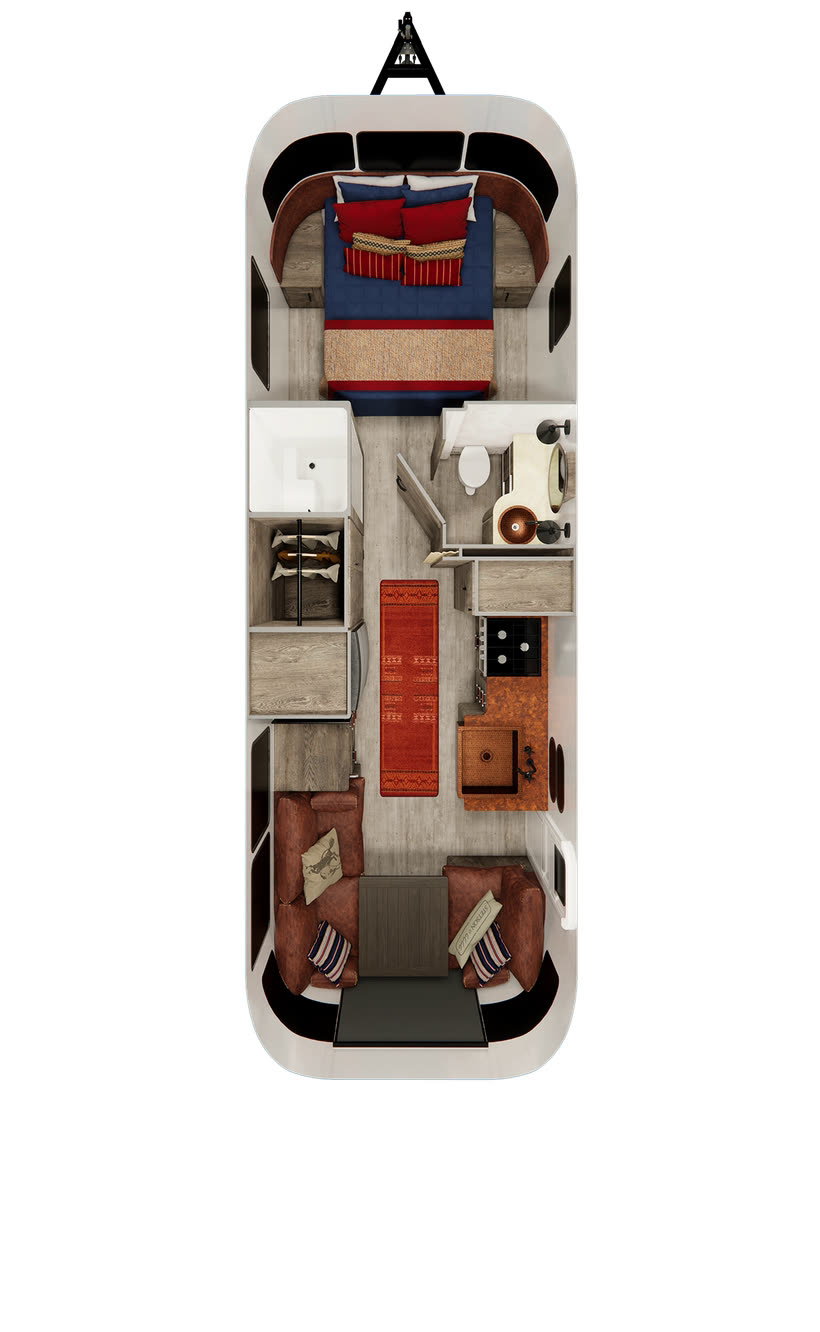

Tap a numbered point to see what's where. Zones placed against the official 27FB diagram.
- 1Front primary bed — Walk-around front queen — the fixed primary sleeping zone, ahead of the bath.
- 2Shower — Curb-side shower stall — the two-piece mid-ship bath splits the shower from the toilet across the aisle.
- 3Toilet & lav — Street-side toilet and sink, opposite the shower — a full-width wet path mid-coach.
- 4Wardrobe — Hanging wardrobe and dresser storage between the bath and the rear lounge.
- 5Cooktop — Three-burner cooktop on the street-side galley run.

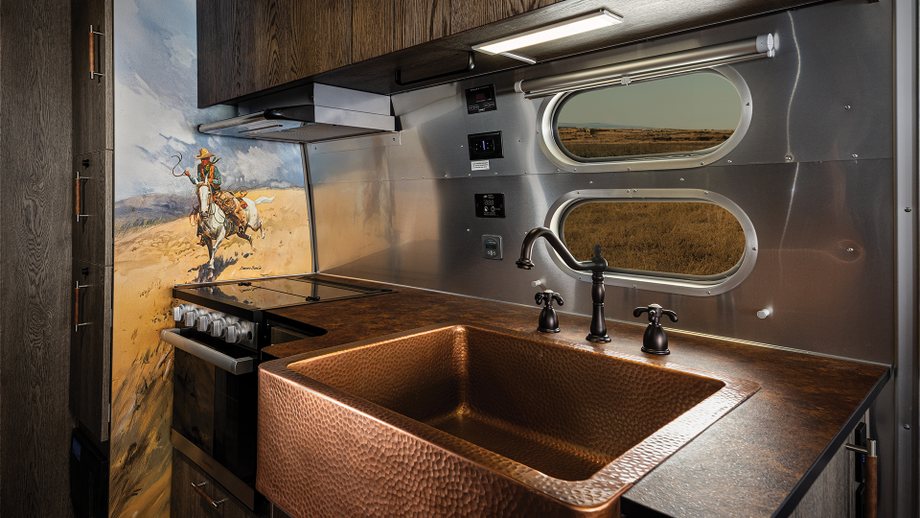

- 6Galley & sink — Stainless sink and counter with the fridge alongside — the kitchen core.

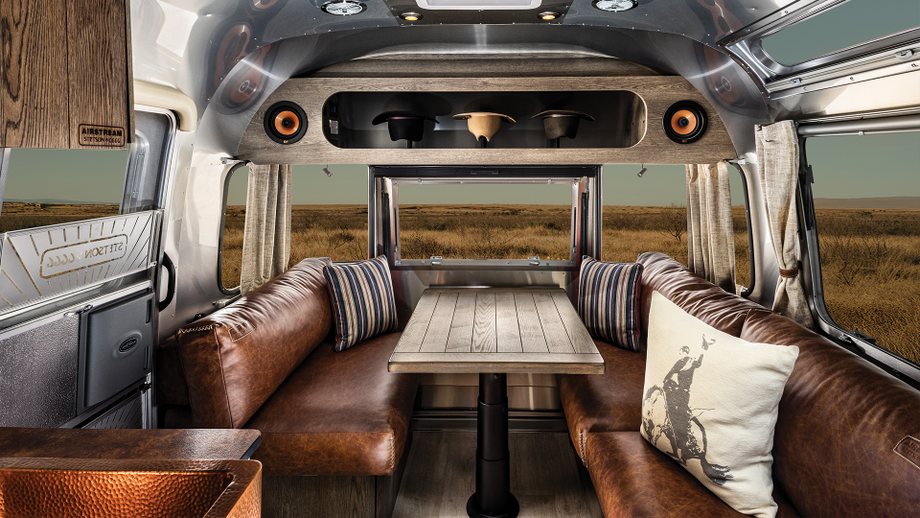

- 7Rear lounge & dinette — Convertible booth dinette and connected lounge across the rear — folds down for guests.
Specifications
Weight
Size
Tanks
Camping
Fit check
Height includes rooftop A/C - without A/C the trailer is roughly 2–3" shorter. Always measure your specific unit before a tight clearance.
Total rig length: about 48 ft with a typical tow vehicle (~19 ft) - plus 2–3 ft for the hitch gap. Always confirm site dimensions with the campground before booking.
Full specificationsSecondary specs - solar, battery, interior height and more
- Single-axle trailers are lighter and easier to maneuver; dual-axle adds stability for larger, heavier models.Axle
- Dual axle
- Standing headroom inside with A/C unit - measured at the tallest point.Interior height
- 6' 7" (with A/C)
- Factory rooftop solar panel wattage for charging the house battery off-grid.Solar
- 300 W (standard)
- House battery capacity in kilowatt-hours - powers lights, outlets, and appliances.Battery
- 2.5 kWh
- An editorial 0–100 composite from this site - battery kWh, solar watts, and tank sizes vs. the lineup. Tiers: Strong (75+), Moderate (55–74), Basic (<55). Not an official Airstream rating.Off-grid score
- Moderate
Towing
Your tow vehicle must be rated for at least 7,600 lb - the official fully-loaded GVWR. Official hitch (tongue) weight is 900 lb (~12% of GVWR).
Can your vehicle tow it?
Checks this floorplan's loaded weight (7,600 lb GVWR) against a tow vehicle's three real limits - tow rating, payload, and combined weight (GCWR). Pick your vehicle:
Ratings shown for Chevrolet Silverado 1500 - Crew Cab 4×4 · 5.3L V8 · Max Trailering Package (NHT). Your door-jamb certification label wins over any number here.
Good margin on every limit. Binds on combined weight (gcwr) at 79%.
Modeled config: Crew Cab 4×4 · 5.3L V8 · Max Trailering Package (NHT). source 1 · source 2
How this is calculated
Three checks against one stated configuration of the tow vehicle. Max tow, payload, and curb weight are manufacturer-published; GCWR is published where available and otherwise a derived planning value (curb + max tow + 300 lb - not an official published GCWR, see below).
- Trailer tow rating - the trailer at its loaded weight (GVWR, not dry) vs. the truck's max tow rating.
- Payload - loaded tongue weight (modeled at 13% of trailer GVWR, the mid of the 10–15% rule) plus people & gear in the cab vs. the truck's payload.
- Combined weight (GCWR) - truck + trailer + everything vs. the gross combined weight rating. GCWR honesty note: where a manufacturer publishes a GCWR we use it; where it does not, the dataset carries a derived planning value (curb weight + max tow + 300 lb, the SAE J2807 basis) - not an official published GCWR for that configuration.
The verdict is the worst of the three: ≤80% of a limit is comfortable, 80–100% is tight, over 100% exceeds it. Manufacturers' "max tow" and "max payload" usually come from different configurations and are mutually exclusive, so each vehicle here uses ONE coherent, sourced config. These are planning figures - your truck's door-jamb certification label is the final word.
What can tow it?
17 of 26 popular tow vehicles can tow this trailer's 7,600 lb GVWR without exceeding a limit. Verdict = the binding of three checks - tow rating, truck payload, and GCWR - the same math as the tow-safety calculator above (300 lb people + gear in the truck). A comfortable verdict means the binding limit is under 80% used; tight is within limits but near them; over limit exceeds a rating. Margin shown is on the binding limit.
| Vehicle | Tow rating | Margin | Verdict |
|---|---|---|---|
| Jeep Wrangler | 3,500 lb | -4,100 lb tow rating | Over limit |
| Kia Telluride | 5,000 lb | -2,600 lb tow rating | Over limit |
| Hyundai Palisade | 5,000 lb | -2,600 lb tow rating | Over limit |
| Toyota 4Runner | 6,000 lb | -1,600 lb tow rating | Over limit |
| Jeep Grand Cherokee | 6,200 lb | -1,400 lb tow rating | Over limit |
| Toyota Tacoma | 6,400 lb | -1,200 lb tow rating | Over limit |
| Mercedes-Benz G550 | 7,000 lb | -600 lb tow rating | Over limit |
| GMC Hummer EV SUV | 7,500 lb | -451 lb payload | Over limit |
| Ford Ranger | 7,500 lb | -100 lb tow rating | Over limit |
| Rivian R1S | 7,700 lb | +100 lb GCWR | Tight |
| Chevrolet Colorado | 7,700 lb | +100 lb tow rating | Tight |
| Land Rover Range Rover | 7,715 lb | +115 lb tow rating | Tight |
| Chevrolet Suburban | 8,000 lb | +227 lb GCWR | Tight |
| Land Rover Defender 110 | 8,201 lb | +601 lb GCWR | Tight |
| Chevrolet Tahoe | 8,400 lb | +627 lb GCWR | Tight |
| Toyota Sequoia | 9,010 lb | +122 lb payload | Tight |
| Lexus GX 550 | 9,063 lb | +1,463 lb GCWR | Tight |
| Ford Expedition | 9,600 lb | +2,000 lb GCWR | Tight |
| Chevrolet Silverado 1500 | 11,000 lb | +3,400 lb GCWR | Comfortable |
| Tesla Cybertruck | 11,000 lb | +3,400 lb GCWR | Tight |
| Rivian R1T | 11,000 lb | +3,400 lb GCWR | Tight |
| GMC Sierra 1500 | 11,000 lb | +5,290 lb GCWR | Comfortable |
| Toyota Tundra | 11,170 lb | +3,960 lb GCWR | Comfortable |
| Ram 1500 | 11,580 lb | +3,740 lb GCWR | Comfortable |
| GMC Hummer EV Pickup | 12,000 lb | +199 lb payload | Tight |
| Ford F-150 | 13,500 lb | +5,900 lb GCWR | Comfortable |
Hitch & towing setupWhat receiver, WDH and brake controller this floorplan needs
Rated for up to 8,000 lb trailer weight / 800 lb tongue weight. Your Stetson + 6666 Special Edition 27FB at 7,600 lb GVWR needs at least this class.
With 900 lb tongue weight (official dry hitch weight), a WDH redistributes load across all axles for level towing and better braking. Many states require one above 5,000 lb GVWR.
At 7,600 lb loaded, wind gusts and passing trucks can induce sway. A friction or dual-cam anti-sway device keeps things stable - often integrated into the WDH.
Standard for all Airstream travel trailers - carries running lights, turn signals, brakes, 12V charge, and electric brake signal. Your tow vehicle needs a matching 7-pin socket.
Required - all Airstream trailers have electric brakes. An in-cab brake controller syncs trailer braking with your vehicle. Proportional (vs. time-delayed) gives smoother stops.
Hitch class is the minimum required. Always verify your specific tow vehicle's hitch receiver rating - some vehicles come with a lower-rated receiver than their tow rating allows. WDH and anti-sway recommendations follow industry best practices for this weight class.
Off-grid
How long off-grid?
Boondocking endurance for this floorplan - modeled from its real 2.5 kWh battery, 300 W solar, and 39 gal fresh / 39 gal gray / 39 gal black tanks.
House battery runs down first under these assumptions.
How this is calculated
Power: usable battery = nameplate kWh × 0.8 (blended depth-of-discharge). Daily load presets - light ≈ 1,500, moderate ≈ 2,800, heavy ≈ 5,000 Wh/day - from published boondocking power budgets, excluding air conditioning (no trailer battery runs rooftop AC for long). Solar harvest = panel watts × peak-sun-hours (summer 5.5, spring/fall 4.0, winter 2.5) × 0.7 system derate. Water: per-person daily use (light 3 / moderate 5 / heavy 8 gal fresh; gray ≈ 80% of fresh; black from toilet use) against the real tank sizes. Endurance is whichever runs out first. Estimates for planning - your real usage varies.
Propane: the standard dual 20 lb tanks last about 7 days of moderate use (furnace + hot water + cooking).
Water autonomy
How many days can the Stetson + 6666 Special Edition 27FB camp before needing a refill or dump? Adjust people and usage below.
← Limiting factor
At moderate usage: 6 gal fresh / 5 gal gray / 2 gal black per person per day. Normal showers, regular cooking.
Estimates assume typical RV usage patterns. Actual consumption depends on shower habits, cooking, laundry, toilet type, and climate. Gray includes sink and shower drain; black is toilet only.
Care & upkeep
Trip checklist, winterization & maintenanceTuned to this floorplan's specs - progress saves on this device
Trip checklist
Pre-departure checklist for the Stetson + 6666 Special Edition 27FB, using its real specs. Check off items as you go - progress saves on this device.
0/19 done
Water system
Tow & safety
Power & gas
Interior prep
Winterization
This Stetson + 6666 Special Edition 27FB has 3 tanks to drain.
- Drain 39-gallon fresh water tank - Open the low-point drain valve until the tank is fully empty.
- Drain 39-gallon gray water tank - Open the gray valve and let it drain completely at a dump station.
- Drain 39-gallon black tank - Flush thoroughly before draining. Use a tank rinse wand if available.
- Bypass water heater before adding antifreeze - Set the bypass valve so antifreeze flows through the lines, not the heater tank.
- Add RV antifreeze to all drains and toilet - Pour non-toxic RV antifreeze into each P-trap: kitchen, bathroom sink, shower, and toilet bowl.
- Open all faucets to relieve pressure - Turn on hot and cold at each faucet, then leave slightly open during storage.
- Disconnect 2.5 kWh house battery - Disconnect the negative terminal. Store fully charged and on a trickle charger if possible.
- Turn off propane at the tank valve - Close the main propane valve on each tank.
- Inspect and clean roof seals - Check all roof seams, vents, and antenna bases for cracks. Reseal with Dicor if needed.
- Clean thoroughly and remove all food - Wipe all surfaces, empty the fridge (leave door propped open), remove perishables.
Maintenance
Storage
12' × 35' enclosed or dedicated RV lot - needs a 33' minimum slot; Too large for residential garages — RV storage recommended (9.58' clearance with A/C).
Strengths & trade-offs
Strengths
- Balanced size for most parks
- Strong solar / off-grid ready
- Sleeps 4
Trade-offs
- Plan payload carefully
- Premium price point
