2025 MODEL YEAR
Bambi 20FB
- family
- national_parks
- off-grid
- solo
Sleeps up to 4, Front Primary Bed, Combined Corner Shower and Lavvy, Convertible Booth Style Dinette, Expansive L-Shaped Galley
Specifications
- Length
- 20' 7"
- Dry weight
- 3,900 lb
- GVWR
- 5,000 lb
- Cargo capacity (CCC)
- 1,100 lb
- Hitch weight
- 625 lb
- Sleeps
- 4
- Fresh / gray / black
- 23 / 30 / 18
- Solar
- 200 W (standard)
- Battery
- 2.5 kWh
- Off-grid score
- 44 / 100
- MSRP
- $75,400
Recommended minimum tow rating
6,500 lbor more
Sized so this floorplan's fully-loaded GVWR of 5,000 lb sits at a comfortable ~80% of your tow vehicle's limit. Hitch weight is 625 lb (~13% of GVWR). Match it to your vehicle →
How long off-grid?
Boondocking endurance for this floorplan — modeled from its real 2.5 kWh battery, 200 W solar, and 23 gal fresh / 30 gal gray / 18 gal black tanks.
House battery runs down first under these assumptions.
How this is calculated
Power: usable battery = nameplate kWh × 0.8 (blended depth-of-discharge). Daily load presets — light ≈ 1,500, moderate ≈ 2,800, heavy ≈ 5,000 Wh/day — from published boondocking power budgets, excluding air conditioning (no trailer battery runs rooftop AC for long). Solar harvest = panel watts × peak-sun-hours (summer 5.5, spring/fall 4.0, winter 2.5) × 0.7 system derate. Water: per-person daily use (light 3 / moderate 5 / heavy 8 gal fresh; gray ≈ 80% of fresh; black from toilet use) against the real tank sizes. Endurance is whichever runs out first. Estimates for planning — your real usage varies.

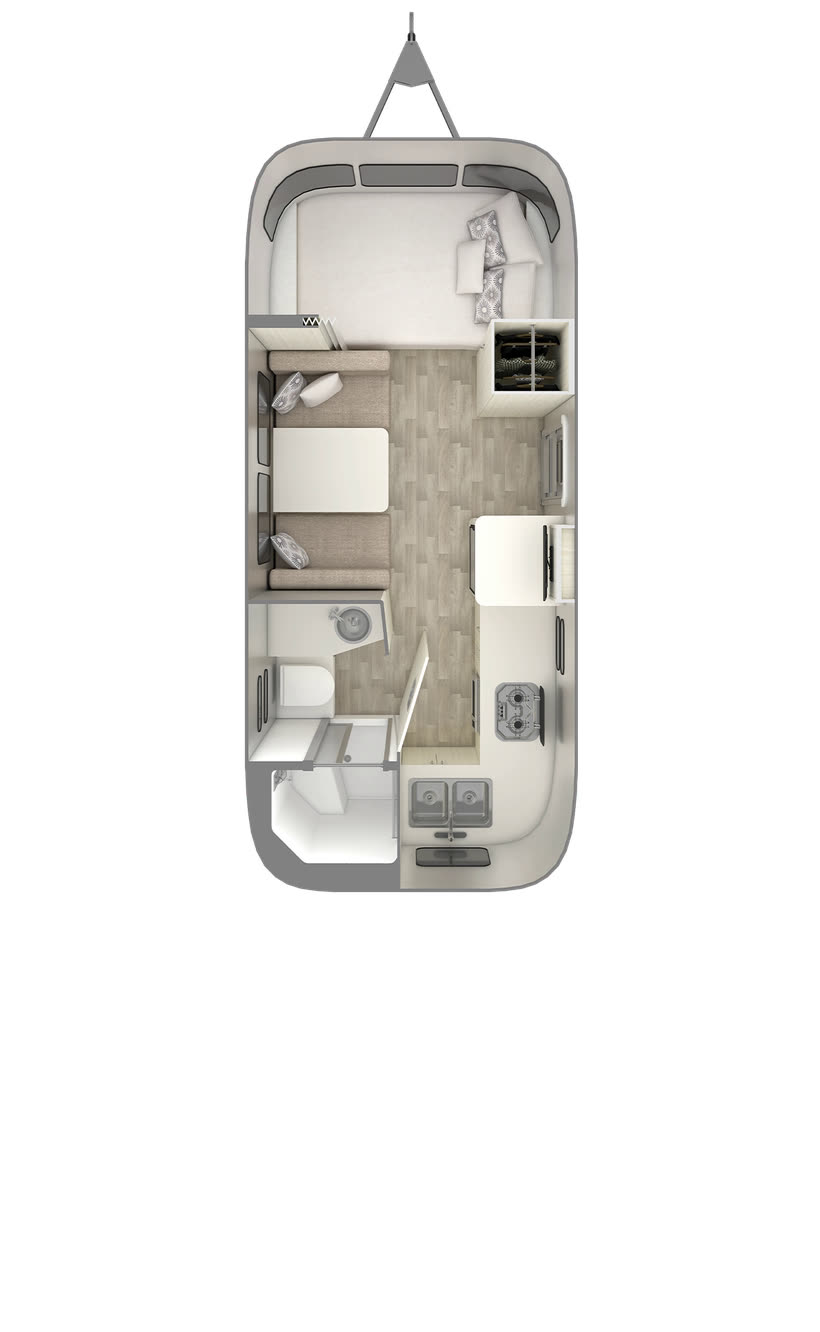

Floor plan
Strengths
- Balanced size for most parks
- Strong solar / off-grid ready
- Sleeps 4
Trade-offs
- Compact storage
